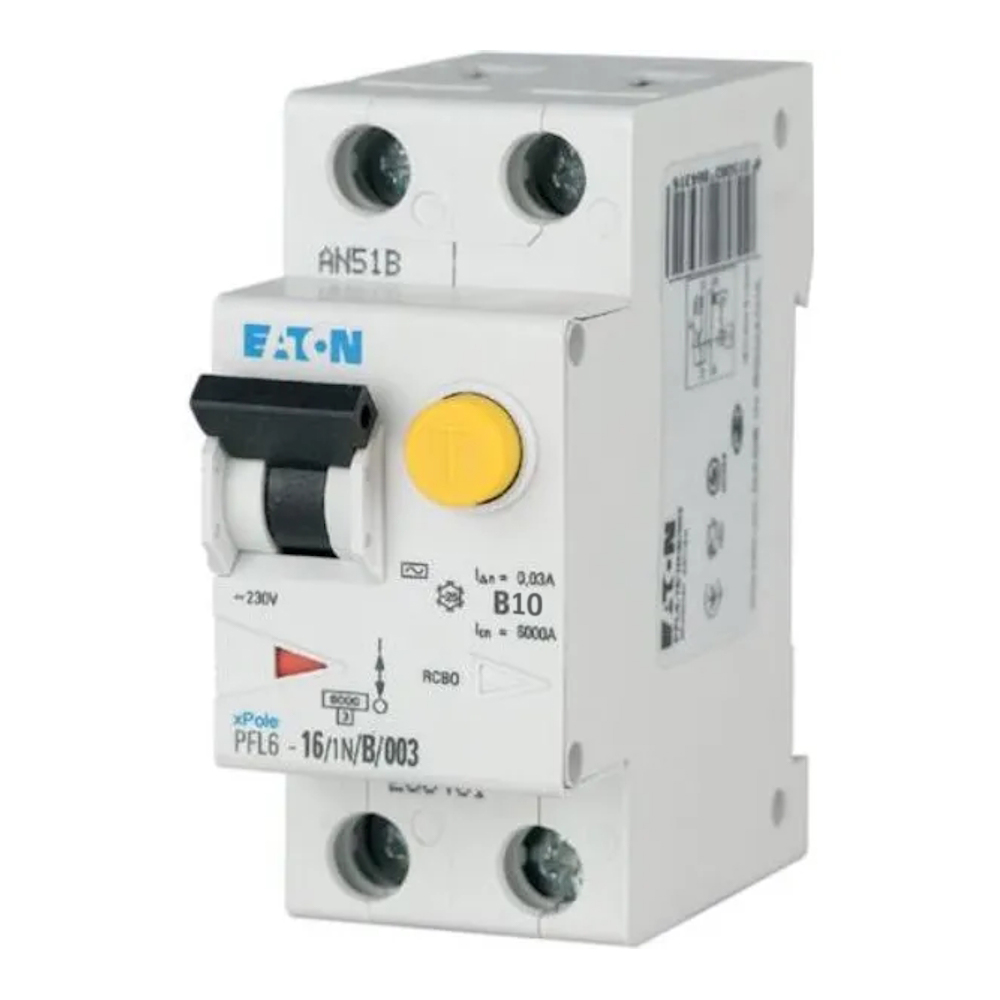

RCD/MCB Combination 1Pol+N A-Type B-Curve 10A 30mA 230V IP20 Eaton

Description

Residual current device/miniature circuit breaker combination, line voltage-independent, contact position indicator red - green, comprehensive range of accessories suitable for subsequent installation, rated operational currents up to 25 A, tripping characteristics B, C, rated breaking capacity 6 kA, frost-resistant up to -25 °C, economy series mainly for building installations.

Technical Information

• Voltage Type: AC
• Built-in Depth: 69.5 mm
• Rated Current: 10 A
• Rated Voltage: 230 V
• Release Characteristic: B
• Rated Insulation Voltage Ui: 440 V
• Rated Fault Current: 0.03 A
• Leakage Current Type: A
• Surge Current Capacity: 0.25 kA
• Current Limiting Class: 3
• Over Voltage Category: 3
• Pollution Degree: 2
• Width in Number of Modular Spacings: 2
• Frequency: 50 Hz
• Degree of Protection (IP): IP20
• Number of Protected Poles: 1
• Concurrently Switching Neutral Conductor: Yes
• Rated Short-Circuit Breaking Capacity According to IEC 60947-2: 0 kA
• Connectable Conductor Cross Section Solid-Core: 1-25 mm²
• Connectable Conductor Cross Section Multi-Wired: 1-25 mm²
• With Interlocking Device: No
• Ambient Temperature During Operating: -25 to 40 °C
• Flush-Mounted Installation: No
• Number of Poles (Total): 2
• Anti-Nuisance Tripping Version: No
• Rated Impulse Withstand Voltage Uimp: 4 kV
• Rated Short-Circuit Breaking Capacity Icn According to EN 61009-1: 6 kA
• Disconnection Characteristic: Undelayed
• Rated Short-Circuit Breaking Capacity According to EN 61009: 6 kA

Specification

• Measure (WxHxD): 37×75×86 mm
